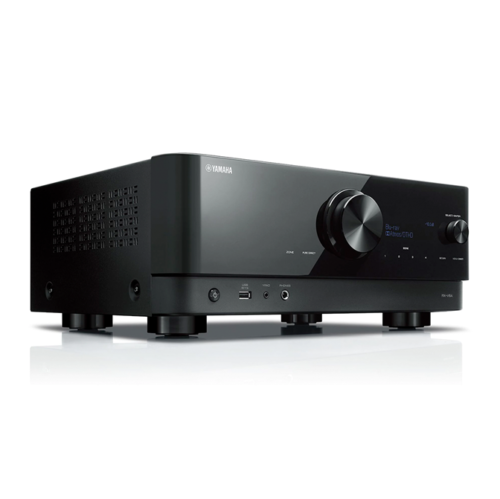

Yamaha RXV6A 7.2

Unparalleled Sound

Dolby Atmos® with Height Virtualizer*: Puts you at the center of the action by positioning sounds to different points in your room, including from above. *This function is available via FW update.

Cinema DSP 3D: Incorporates extensive sound field data from world famous concert halls and music clubs to reproduce the same big theater acoustics within the walls of your home.

Music Enhancer: Restores compressed audio so it sounds the way it was intended to be heard.

High Slew Rate Amplifier: Responds to rapid changes in input level for precise and stable signal transmission.

Description

Unmatched Audio Quality

The Yamaha RXV6A 7.2 Channel Home Theatre AVR is designed for audiophiles who demand top-quality sound. With an impressive 100W per channel across nine channels, this receiver is engineered to bring your favorite music and movies to life like never before. Whether you’re watching an action-packed blockbuster or streaming your favorite playlist, the RXV6A delivers crystal-clear audio that immerses you in the experience.

Advanced Features for Modern Entertainment

The RXV6A is equipped with cutting-edge technology to enhance your home theater experience. With DAB/FM radio capabilities, you can enjoy your favorite stations with superior sound quality. Additionally, the MusicCast feature allows for wireless multi-room audio streaming, giving you the flexibility to enjoy high-definition sound in every corner of your home. Control your system easily through the intuitive MusicCast app and enjoy seamless integration with other smart devices.

Stylish Design and User-Friendly Setup

Aesthetically pleasing yet functional, the Yamaha RXV6A comes in a sleek black finish that complements any home decor. The user-friendly interface and straightforward setup process make it easy for anyone to get started. With plenty of HDMI inputs and support for 4K Ultra HD video, this receiver ensures you’re ready for the latest technology without sacrificing performance. Choose the Yamaha RXV6A to transform your living space into a cutting-edge entertainment hub.

Additional information

Top features

Dolby Atoms® with Height Virtualizer*
For those without in-ceiling or upward firing speakers in their system, Dolby Atmos with Height Virtualization Technology simulates the Atmos experience with forward facing-drivers. Configure up to five speakers to replicate the effect of two in-ceiling speakers, or utilize all seven channels to simulate the powerful effect of four overhead speakers.

DTS:X®
Immersive audio formatting places sound where it would naturally occur in space, creating life-like, multi-dimensional audio. The included spatial remapping engine of DTS Neural:X™ offers improved immersion and heightened realism in all your favorite movies.

CINEMA DSP 3D for Movie, Music and Game
This unique Yamaha proprietary sound field creation technology, was created by combining measured sound field data with digital signal processing. Yamaha collected sound field data from famous concert halls and music clubs around the world, utilizing its wealth of experience in the fields of concert hall design, public address and mixing. By digitizing this vast trove of information and incorporating it into dedicated LSI devices, it effectively reproduces the spaces of concert halls and music clubs in your home. Immerse yourself in the astounding realism of your movies, and enter a world of profound theater sound.

Feel every dimension in Dolby Atmos. Enjoy a 5.1 surround speaker system and two additional overhead speakers or two Dolby Atmos elevation speakers, delivering dramatic overhead effects for truly enveloping audio – including Dolby Surround upmixer for legacy content.

Advantage of High Slew Rate Amplifier
It would contribute a precise signal transmission, especially suitable for high resolution audio signal. Generally high slew rate amplifier causes unstable signal transmission, Yamaha’s newly design circuit achieves high slew rate with stable signal transmission.

Compressed Music Enhancer
When music is encoded into a digitally compressed format like MP3, the frequency response suffers. Yamaha’s Compressed Music Enhancer employs sophisticated digital signal processing using exclusive algorithms to restore what was lost, so the music always sounds the way it should.

Specifications

Amplifier Section Channel 7.2
Rated Output Power (1kHz, 1ch driven) 150 W (4 ohms, 0.9% THD)
Rated Output Power (20Hz-20kHz, 2ch driven) 100 W (8 ohms, 0.06% THD)
Maximum Effective Output Power (1kHz, 1ch driven) (JEITA) 160 W (6 ohms, 10% THD)
High Slew Rate Amplifier Yes
Surround Sound Processing Surround:AI N/A
CINEMA DSP Yes
DSP Programs 17
Dialog Level Adjustment Yes
Virtual Presence Speaker Yes
Virtual Surround Back Speaker Yes
Dialogue Lift Yes
SILENT CINEMA / Virtual CINEMA DSP Yes
Dolby Atmos Yes
Dolby Atmos Height Virturalizer Yes (via firmware update)
Dolby TrueHD Yes
Dolby Digital Plus Yes
Dolby Surround Yes
DTS:X Yes
DTS-HD Master Audio Yes
Auro 3D N/A
Audio Features File Format MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 384 kHz / 24-bit, WAV / AIFF: up to 384 kHz / 32-bit, DSD: up to 11.2 MHz
Pure Direct Yes
Compressed Music Enhancer Yes
High-resolution Music Enhancer N/A
YPAO multi-point measurement Yes
YPAO Volume Yes
Adaptive DRC (Dynamic Range Control) Yes
Initial Volume & Maximum Volume Setting Yes
A.R.T. Wedge N/A
Bi-amp capability Yes
Audio Delay Yes (0-500 ms)
DA Converter 384 kHz / 32-bit BB PCM5102A
Video Features HDMI eARC Yes
HDMI Audio Return Channel Yes
HDMI Pass-through 8K / 60 Hz, 4K / 120 Hz (via firmware update)
HDMI Up-scaling Yes up to 4K
HDMI Up-conversion N/A
HDR 10+ Yes (via firmware update)
VRR/ALLM/QMS/QFT Yes (via firmware update)
Video adjustment N/A
Tuner Section FM/AM Tuner Yes (Availability varies by region.)
DAB Tuner Yes (Availability varies by region.)
User Interface On-screen display Graphical User Interface
SCENE Yes (8 sets)
App Control Yes (iPhone / iPad / Android phone / tablet)
Web Browser Control Yes

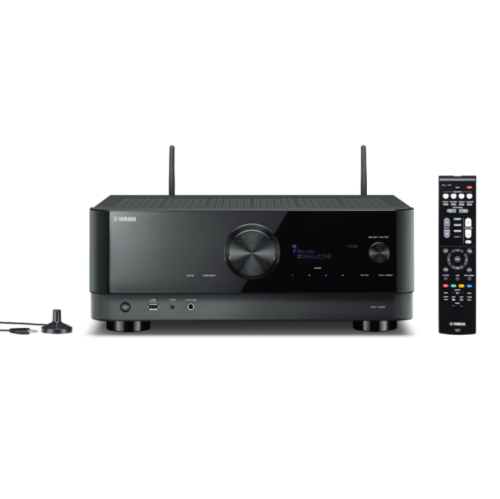

Remote Control Unit Yes
Zone Control Zone 2 Audio Output Preout
Zone 3 Audio Output N/A
Zone 4 Audio Output N/A
Powered Zone Zone 2
Zone Video Output N/A
Zone B Output N/A
Zone GUI N/A
RS-232C Interface N/A
+12V Trigger Output 1
Remote (IR) Input/Output N/A
Party Mode Yes
General Standby Power Consumption (IR only) 0.1 W
Auto Power Standby Yes
ECO mode Yes

4K Certifications

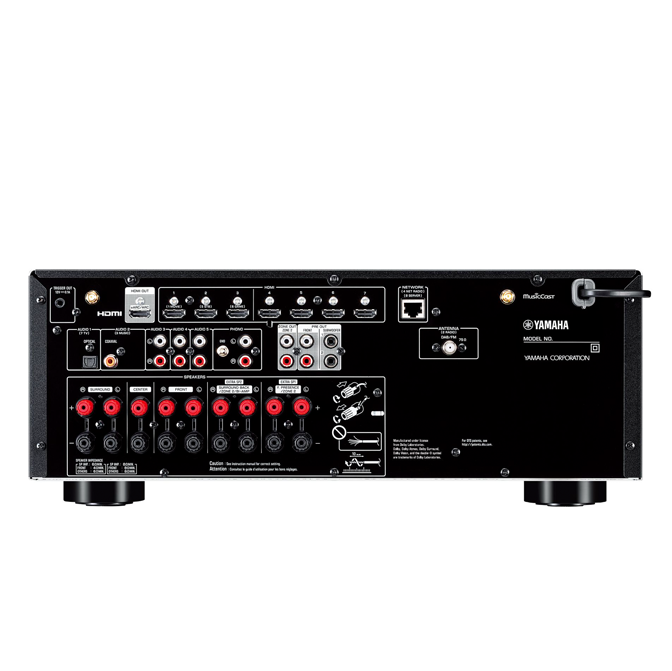

Connectivity MusicCast Surround Yes
HDMI Input/Output 7 / 1
HDMI CEC Yes
USB Input Yes
Network Port Yes
Wi-Fi Yes (2.4 / 5 GHz)
AirPlay Yes
Bluetooth Yes (SBC / AAC)
Front AV Input USB
Digital Audio Input/Output: Optical 1 / 0
Digital Audio Input/Output: Coaxial 1 / 0
Analog Audio Input/Output 4 / 0
Phono Input Yes
XLR Terminal N/A
Component Video Input/Output N/A
Composite Video Input/Output N/A
Preout 2.2-ch
Headphone Output 1

Dimensions

Dimensions (W x H x D) 435 W x 171 H x 377 D mm (with antenna up:435W x 245H x 377D mm)
Weight 9.8 kg
